SA-250 SA-250 Sleeve Accumulator that performs the dual functions of COUNTING and BUNDLING sleeved discs into groups and batches for simple finishing.
OC-2250 OC-2250 Sleeve orientation system that can deliver a sleeved disc in any orientation to facilitate labelling, tabbing or further handling.
TM-2250 TM-2250 In-Line Labelling/Tabbing Module.

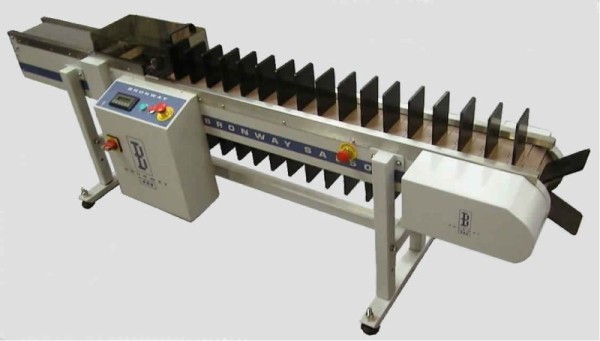

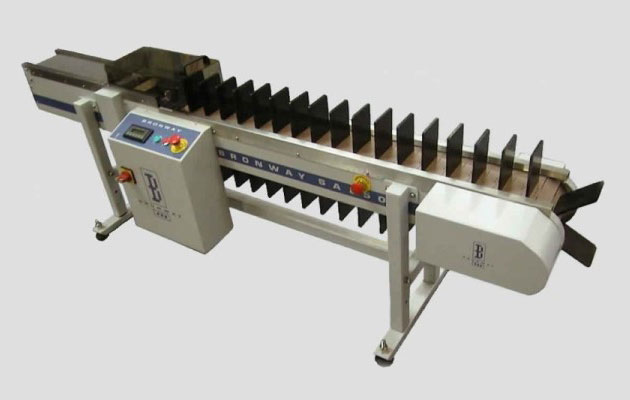

UST-200 UST-200 In-Line DVD Box stacker/accumulator that can operate up to 80-90ppm with dual stacks and programmable stack size. SA-250 CD/DVD Sleeve Accumulator
The Bronway SA-250 CD/DVD Sleeve Accumulator is a versatile unit that performs the dual function of COUNTING and BUNDLING of sleeved discs into discrete groups of a chosen size for simple finishing. The SA-250 automatically counts out pre-set quantities of sleeves (1-25) into separate slots on an accumulating output conveyor and these groups are then positioned vertically for easy removal prior to packing or other finishing.
A fully height adjustable stand-alone unit, the SA-250 is designed for use at the end of automatic sleevers, shrink tunnels, label applicators etc. as well as having a definite application in the streamlining of an all-manual process.
SA-250 Features
- Fixed speed input conveyor (600mm long).
- Vertically segmented output conveyor with 17 separate slots.
- Programmable LCD clear text control unit.
- Processes groups of between 1 and 25 sleeves.
- Designed to interface with upstream machinery.
- Height adjustable (700-1100mm).
- Single rigid unit construction.
- 100 plus sleeves per minute.
| Specifications | |
|---|---|
| Weight: | approx 80kg |
| Dimensions: | approx 2300 x 550 x 700-1100H mm |
| Power Requirements: | 220VAC 50/60 Hz |
If you require additional information or a variation on any of our products, please or contact us.
Images / videos:
Complete sleever line in action
SA-250 Sleeve Accumulator Brochures are provided in Adobe PDF format.
